High Performance Electric Servoactuator INDACT ISOMOVE

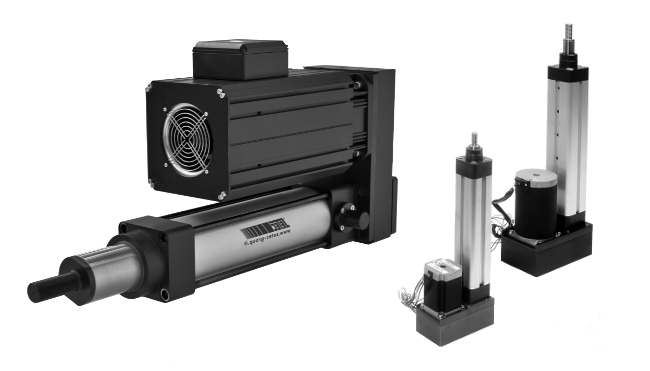

Ball screw electric servo actuator, suitable for high performance applications, featuring overall dimensions and mounting style according to ISO 15552:2004.

  • 13 different types (IE032, IE040, IE050, IE063, IE080,IE80HL, IE100, IE100 HL,IE 100XL, IE125, IE160, IE240).
  • Sizes 125, 160 and 240 do not comply with ISO.
  • Wide range of ball screw pitches for each size.
  • Max Nominal Thrust up to 350 kN.
  • Max Linear Speed up to 1600 mm/sec.
  • High Efficiency mechanical transmission.
  • Duty Cycle 100%.
  • Grease lubricated.

For sizes up to 100 XL versions available are:

  • “D” version featuring axial / direct mounted motor drive with zero-backlash servo-coupling
  • “R” version featuring reduced / parallel mounted motor drive with zero-backlash pulleys belt gear.

For sizes 125 and 160 versions available are:

  • B00 = BASIC MODULE
  • D00 = CUSTOM IN-LINE TRANSMISSION W/O REDUCTION STAGE FOR CUSTOM MOTORS
  • D01 = IN-LINE TRANSMISSION W/O REDUCTION STAGE FOR COMPATIBLE MOTORS
  • D02 = IN-LINE COMPATIBLE PLANETARY GEARBOX REDUCTION STAGE
  • R00 = PARALLEL CUSTOM BELT GEARBOX STAGE FOR CUSTOM MOTORS
  • R01 = PARALLEL BELT GEARBOX STAGE FOR COMPATIBLE MOTORS
  • R02 = PARALLEL BELT GEARBOX STAGE + IN-LINE COMPATIBLE PLANETARY GEARBOX REDUCTION STAGE
  • A01 = COMPATIBLE ANGLE BEVEL GEARBOX STAGE

For sizes 125, 160 and versions available are:

  • "B" version, base module.
  • "R00" version, belt gear transmission i=1
  • "R" version, belt type with gearbox
  • "D" version, direct mounting
  • "A" version, angle gear type with bevel gearbox

Wide range of standard accessories.

Special executions on request, please contact us.
