Setec Group

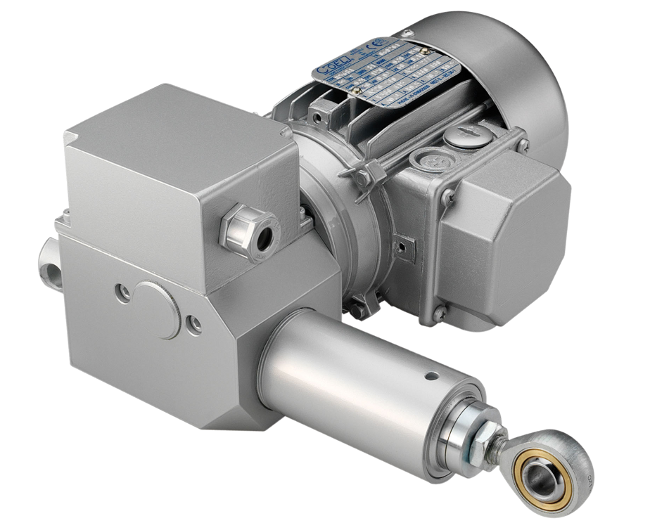

Electric Linear Actuator INDACT, ECO series

Orthogonal-mounted motor Series ECO (1,7-100 kN)

Electric Linear Actuator featuring orthogonal-mounted motor, by the means of worm-screw/worm-wheel gear, for industrial application.

  • 6 different sizes (ECO1, ECO2, ECO3, ECO25, ECO50, ECO100).
  • Wide range of linear Force/Speed for each size.
  • Max nominal force up to 100 kN.
  • Max linear speed up to 78 mm/sec.
  • “T” version, featuring Trapezoidal spindle (self-locking).
  • “S” version, featuring Ball Screw spindle (high efficiency).
  • Powered by AC/3-phases/IP54 motor or DC 24/36/48 V motors.
  • Duty Cycle 25%.
  • Duty Cycle 20% for ECO25, ECO50 and ECO100.
  • Grease lubricated

Rugged industrial build provides top performances together with highest reliability, to meet the most demanding applications in harsh and severe environments.

Wide range of standard accessories.

Special executions on request, please contact us.


Download Catalogue

Linear Actuators INDACT - ECO_ECU_Catalogue (17 Mbytes)

Drives and Controls - LAC_Linear Actuator Controller (0.3 MBytes)
